5486.4 mm to 9144 mm (18’ to 50’)

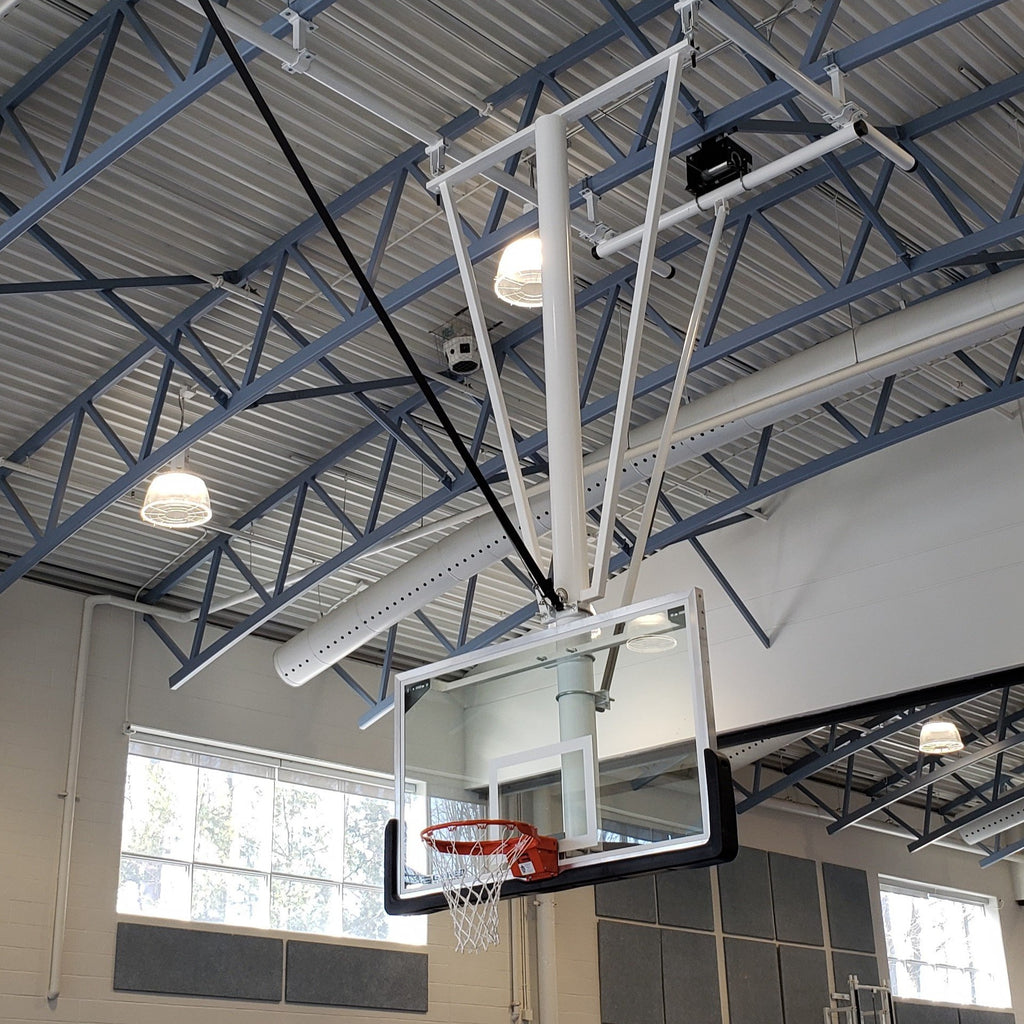

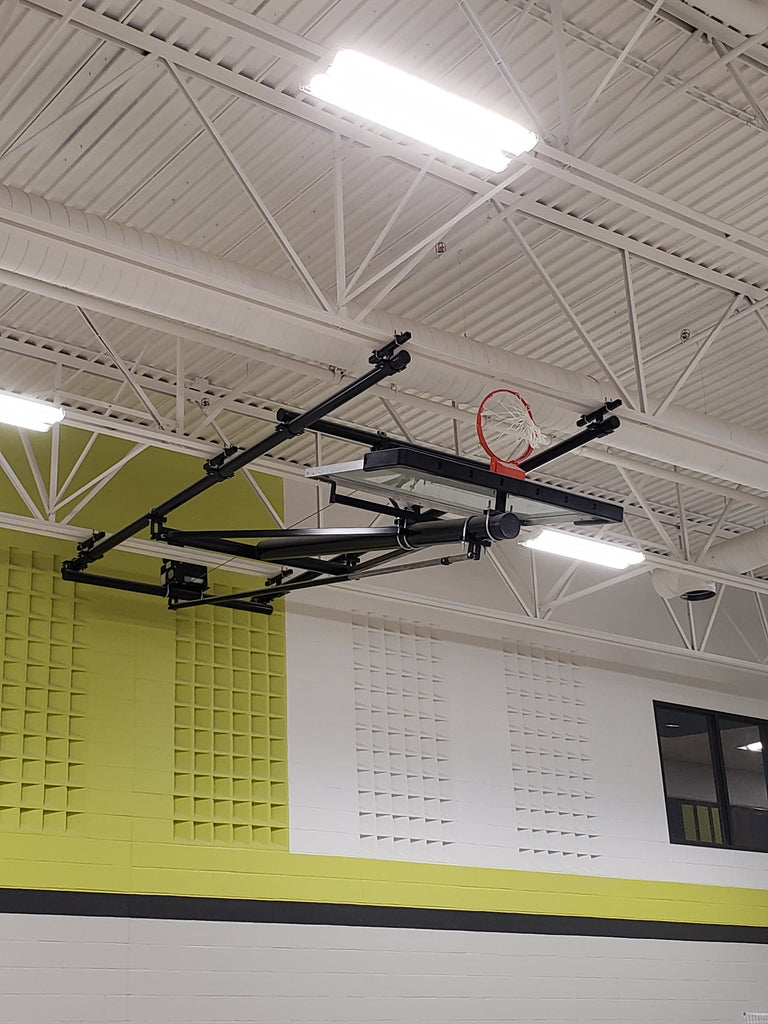

Typical use is as a main court basketball unit. Can also be used in front of stages, over bleachers, in front of mezzanines or windows where walls will not support or wall space does not allow wall mounted units. Installed in gymnasiums to a ceiling height up to 9144 mm (50’ 0”).
Standard paint colour is Black, White or Royal Blue. Custom colours available upon request. Priced per Job
Spec Drawings
Click To View
BB-17-A FRONT FOLDING REAR BRACED
Drawing
BB-17-B REAR FOLDING REAR BRACED
Drawing
BB-17-BB REAR FOLDING REAR BRACED BENT STEM
Drawing
BB-17-C FRONT FOLDING FRONT BRACED
Closed View Drawing
ISO View Drawing
Side View Drawing
BB-17-CB FRONT FOLDING FRONT BRACED BENT STEM
Closed View Drawing
ISO View Drawing
Side View Drawing
BB-17-DB SIDE FOLDING SIDE BRACED BENT STEM
Closed View Drawing
ISO View Drawing
Front View Drawing
BB-17-F FIXED BACKSTOP FRONT OR REAR BRACED
Drawing
