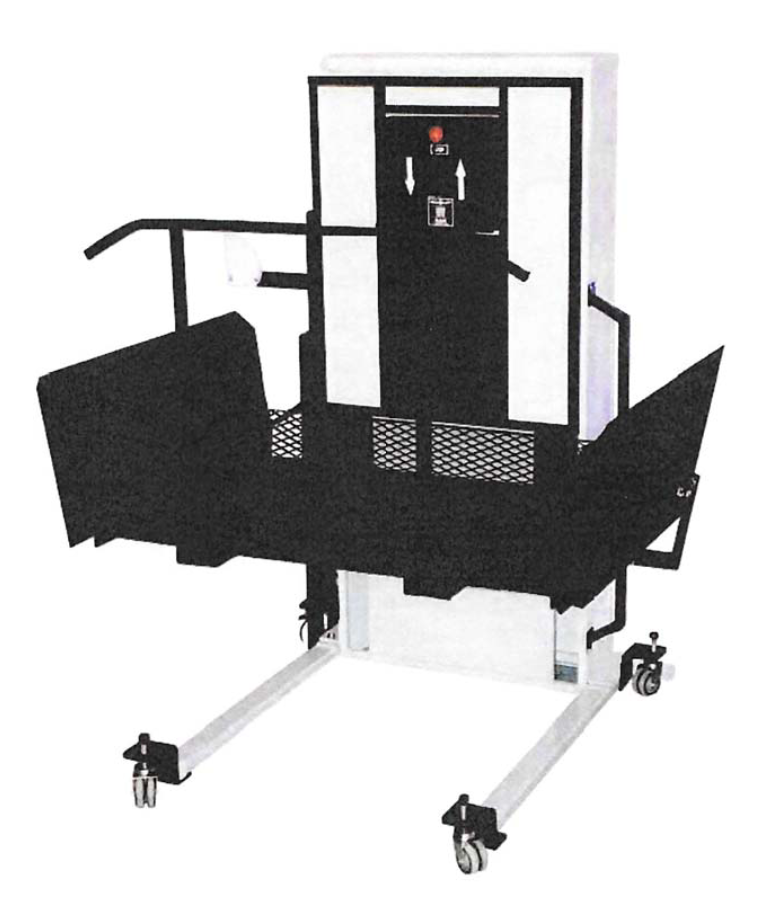

STLIFT - Portable Wheelchair Lift
•Smooth and quiet performance•550 lbs (250 kg) lift capacity
•52” lifting height
•8 feet/minute lift speed
•High grade castors with foot activated locking position to keep lift in place
•Constant pressure Soft Touch control pads for ease of operation•Grated metal platform with full under platform visibility
•Non-skid surface
•18” extra wide positive action reversible toe plate for universal access•Quick and easy set up and adjustment
•Straight through access, lower access right
•Direct worm gear/Acme screw -nut drive for maintenance free operation (much lower maintenance thanbelted or hydraulic systems)
•All mechanics are fully enclosed, yet easy to access through the rear or front of the housing unit
•Attractively finished in a durable off-white baked on finish
•Non load bearing backup safety nut on lift shaft
•Fuse box accessible from carriage
•Keyed emergency stop and manual operation•
UL and CSA certified
Spec Drawings
Click To View
